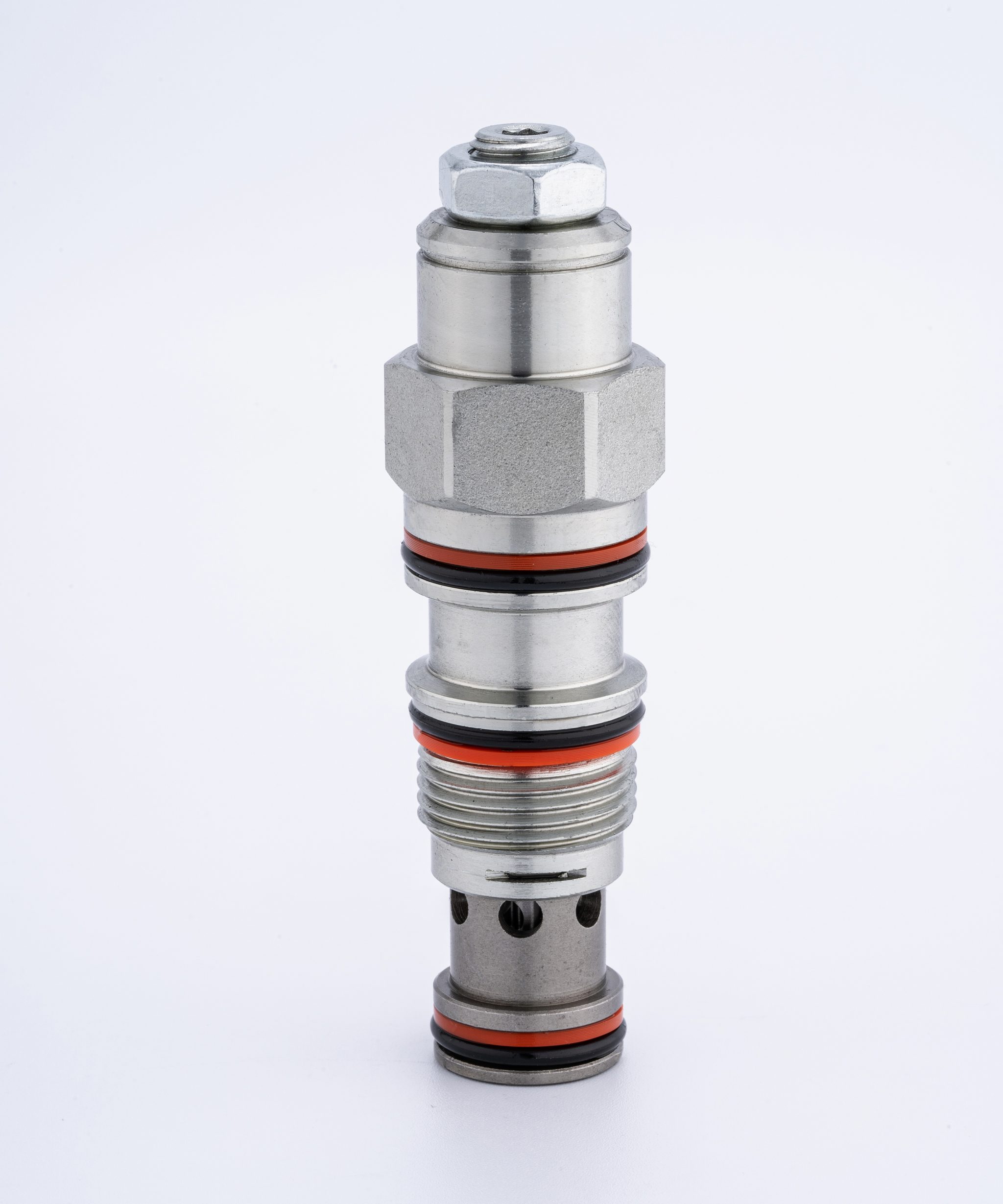

Hydraulic Pressure Reducing and Relief Valve

Hydraulic Pressure Reducing and Relief Valve

Example model:

ZY-PB-17A-3HB-X-Y-Z

Technical Parameters
Rated pressure350 bar
Rated flow rate10 L/min
Molding Jacks17A-3
Installation torque200-215 Nm
XControl Method OptionsWeights kg
LStandard hexagon socket screws0.570
KPressure regulating handle with locking knob0.590
CAnti-adjustment cap – factory setting0.560
YSpring Regulating Options
A7 to 210 bar(Standard set pressure 14 bar)
B3.5 to 105 bar(Standard set pressure 14 bar)
N4 to 55 bar(Standard set pressure 14 bar)
Q4 to 25 bar(Standard set pressure 14 bar)
W10 to 315 bar(Standard set pressure 14 bar)
ZSeal Material Options
NBuna-B
VViton
Order





    Download Catalog





      Ensure Quality – Full CNC Machining

      We adopt full CNC processing to maximize the elimination of human error, with consistency as high as 98%. Several strict inspection and cleaning procedures and a perfect system guarantee the high quality of the products.

      Technology development and design

      Technology development and design

      Testing of raw materials

      Testing of raw materials

      CNC machining

      CNC machining

      Burr repair

      Burr repair

      Surface grinding machine

      Surface grinding machine

      Surface finish detection

      Surface finish detection

      Ultrasonic cleaning

      Ultrasonic cleaning

      External processing nikel plating

      External processing nikel plating

      Thread check gauge

      Thread check gauge

      Hole inner diameter dial indicator detection

      Hole inner diameter dial indicator detection

      Thread ring gauge detection

      Thread ring gauge detection

      Semi-finished products endoscopic detection

      Semi-finished products endoscopic detection

      Product assembly

      Product assembly

      Assembly drawing comparison check

      Assembly drawing comparison check

      Packaging

      Packaging
