ZY2000T Injection Molding Machine Hydraulic Manifold Series

ZY2000T Injection Molding Machine Hydraulic Manifold Series
Standard SeriesAdaptation to maximum oil pump CC/RECMaximum flow rate L/min
ZY2000T125*41200LC-40

Injection molding machinespecial logic oil circuit-injection manifold block

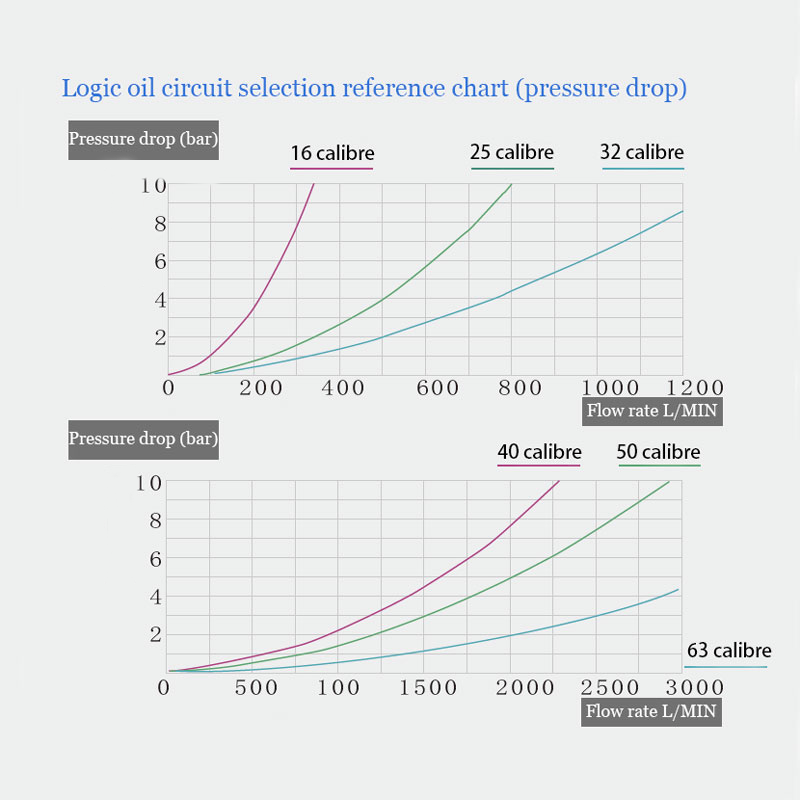

Logic oil pipe diameter*Oil Pump Displacement(L/MIN)Pressure drop(bar)Slide valve pressure drop (bar)
501400~20002.8~5/

Injection Molding Machinespecial Logic Oil Circuit-Total Pressure Manifold Block

Logic oil pipe diameter*Oil Pump Displacement(L/MIN)Pressure drop(bar)Slide valve pressure drop (bar)
501400~20002.8~5/

Injection molding machinespecial logic oil circuit-Clamping manifold block

Logic oil pipe diameter*Oil Pump Displacement(L/MIN)Pressure drop(bar)Slide valve pressure drop (bar)
501500~22003~5.2/
Order





    Download Catalog





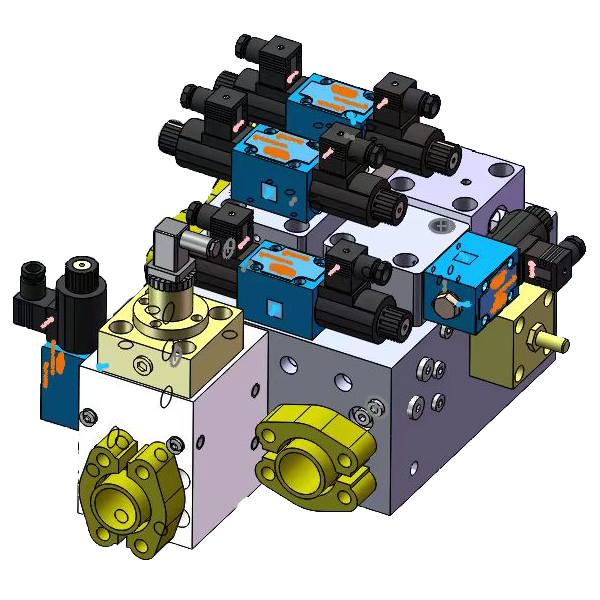

      Injection molding machinespecial logic oil circuit-injection manifold block

      Purchase model: ZY2000-B00-00

      • No external control piping design
      • High flow and low noise runner design
      • Designed for servo system
      • Eliminate all kinds of noise and malfunction common to logic oil circuits.
      • High response back pressure design
      • Diameter 16-63 MM
      • Low noise, etc.

      Injection Molding Machinespecial Logic Oil Circuit-Total Pressure Manifold Block

      Purchase model: ZY2000-A00-00

      • High flow rate and low noise runner design
      • Servo system-specific design (can be used in variable pump system)
      • Elimination of various noises and malfunctions common to logic oil circuits
      • Overflow prevention design of material storage nozzle (optional)
      • Single Scale Option
      • Diameter 16-63mm
      • Low noise, etc.

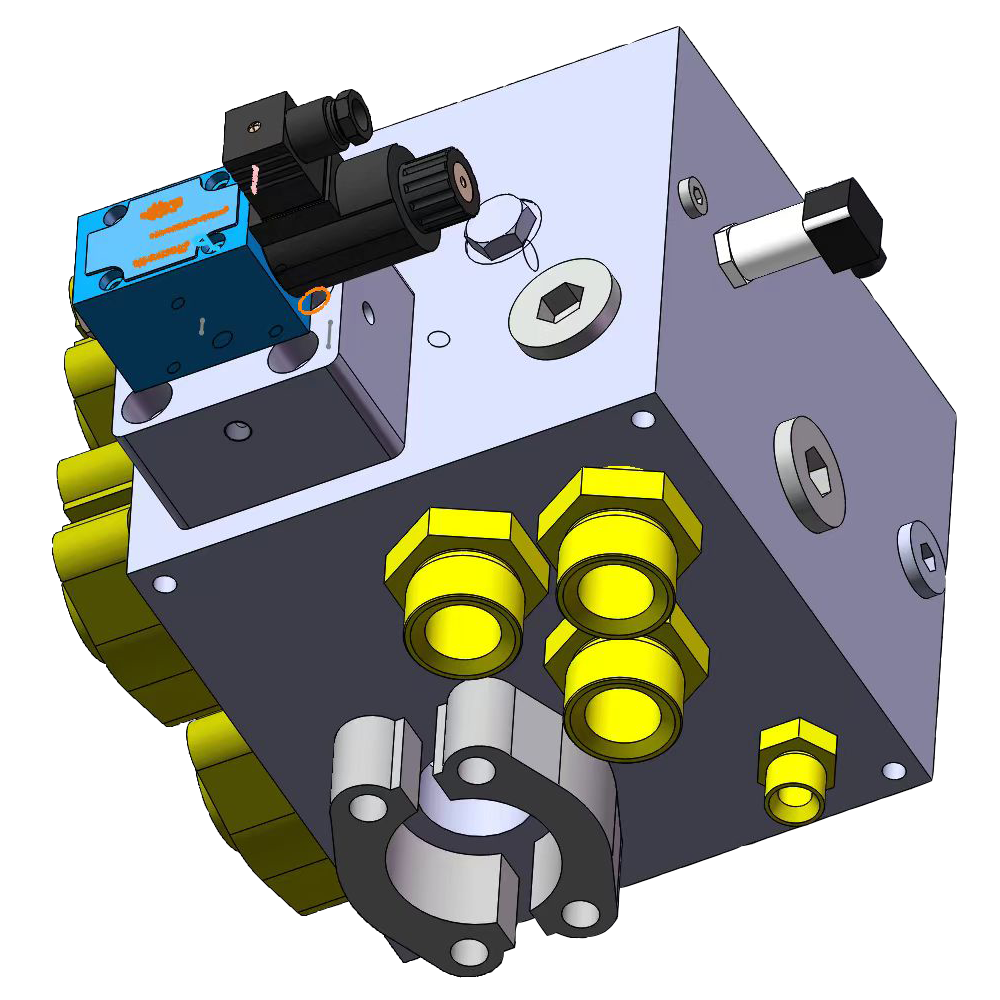

      Injection molding machinespecial logic oil circuit-Clamping manifold block

      Purchase Model:ZY2000-E00-00

      • High flow low noise runner design
      • Designed for servo system
      • Design for CE safety valve option
      • Elimination of various noises and malfunctions common to logic oil circuits.
      • Noise reduction treatment, so that the noise is smaller than the general oil circuit
      • Optimize the smoothness of the movement, so that the machine operation is more stable and smooth.
      • Optimized piping, convenient piping
      • Diameter 16-63MM
      • Low noise and other characteristics

      Ensure Quality – Full CNC Machining

      We adopt full CNC processing to maximize the elimination of human error, with consistency as high as 98%. Several strict inspection and cleaning procedures and a perfect system guarantee the high quality of the products.

      Technology development and design

      Technology development and design

      Testing of raw materials

      Testing of raw materials

      CNC machining

      CNC machining

      Burr repair

      Burr repair

      Surface grinding machine

      Surface grinding machine

      Surface finish detection

      Surface finish detection

      Ultrasonic cleaning

      Ultrasonic cleaning

      External processing nikel plating

      External processing nikel plating

      Thread check gauge

      Thread check gauge

      Hole inner diameter dial indicator detection

      Hole inner diameter dial indicator detection

      Thread ring gauge detection

      Thread ring gauge detection

      Semi-finished products endoscopic detection

      Semi-finished products endoscopic detection

      Product assembly

      Product assembly

      Assembly drawing comparison check

      Assembly drawing comparison check

      Packaging

      Packaging

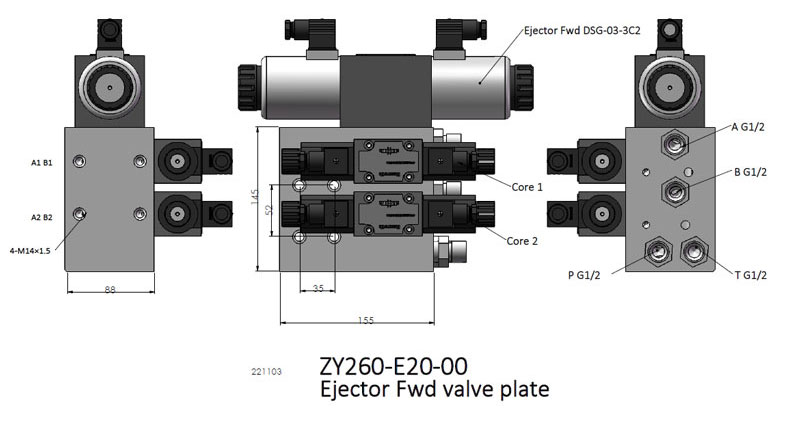

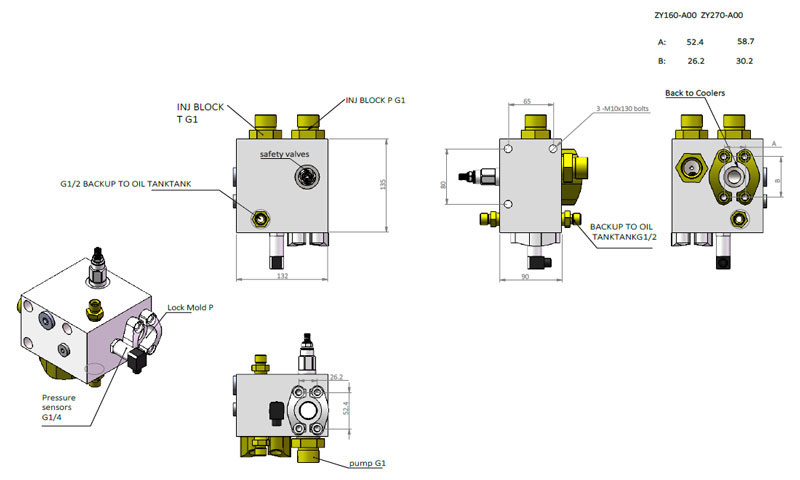

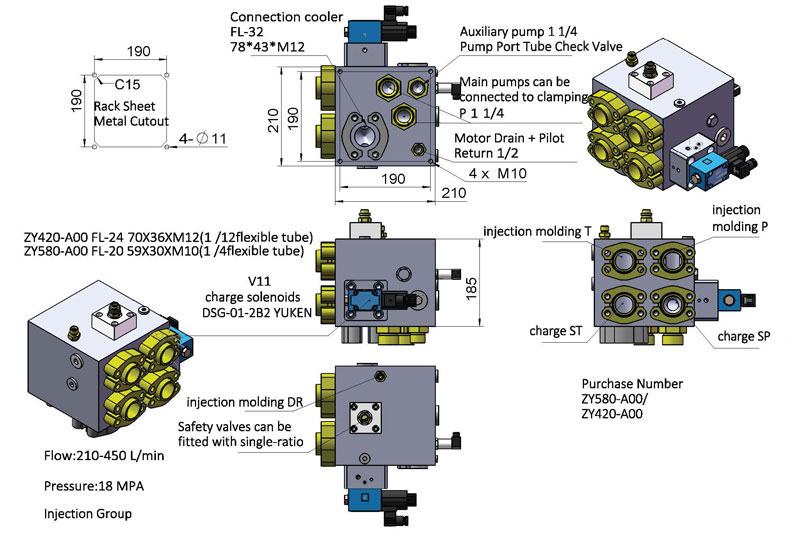

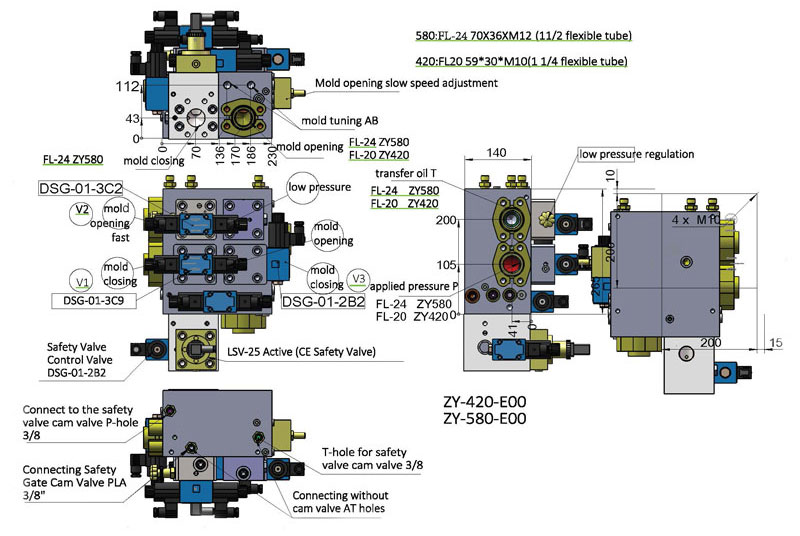

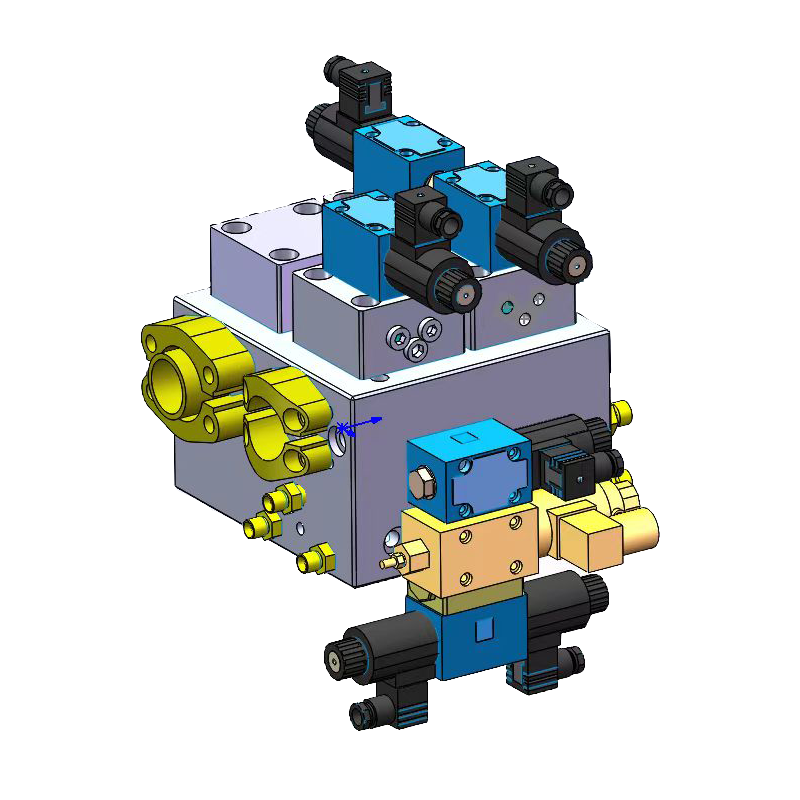

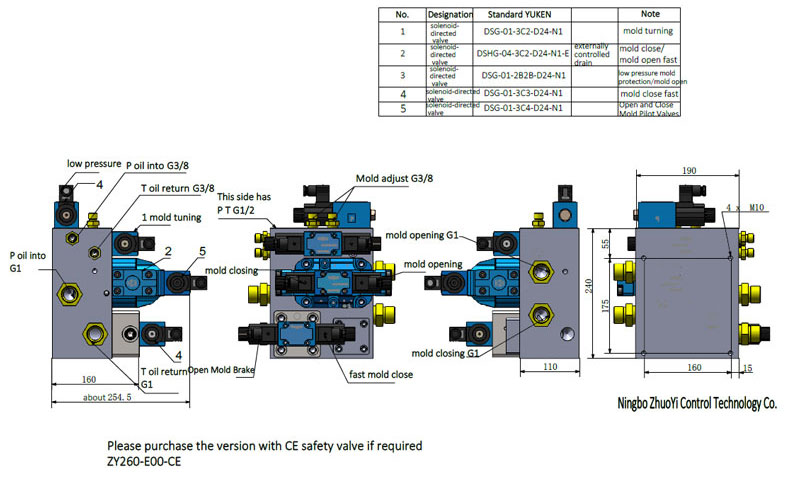

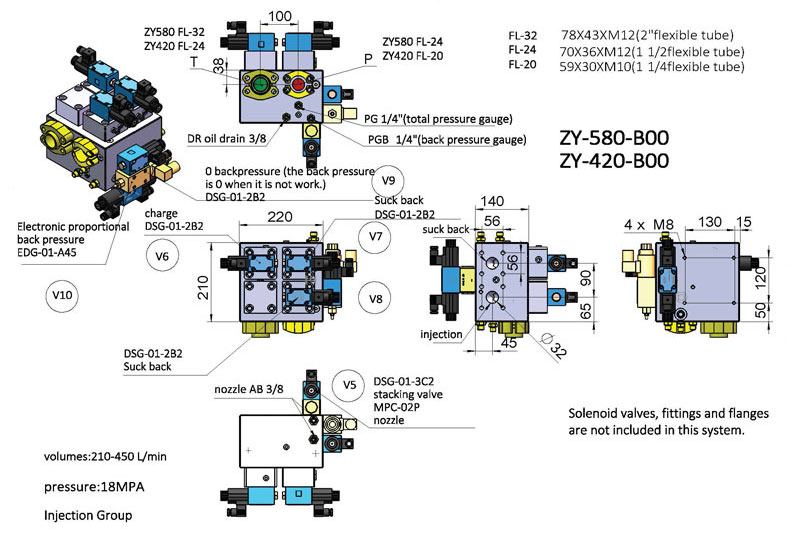

      Manifold Installation Drawings

      Customizable options

      1. Product oil circuit
      2. Product material
      3. Product surface treatment
      4. Hydraulic solenoid valve for product assembly
      5. Product assembled plug-in valve
      6. Select whether to install the valve in the hydraulic manifold or not

      Customizable logo options

      1. Hydraulic manifold body printed logo
      2. Hydraulic manifold body printed model number
      3. Customizable text on hydraulic manifold

      Customizable Packaging Options

      1. Customizable packing box
      2. Customizable packing bag
      3. Customizable stacking method
      4. Customize whether the packaging tape contains logo or not

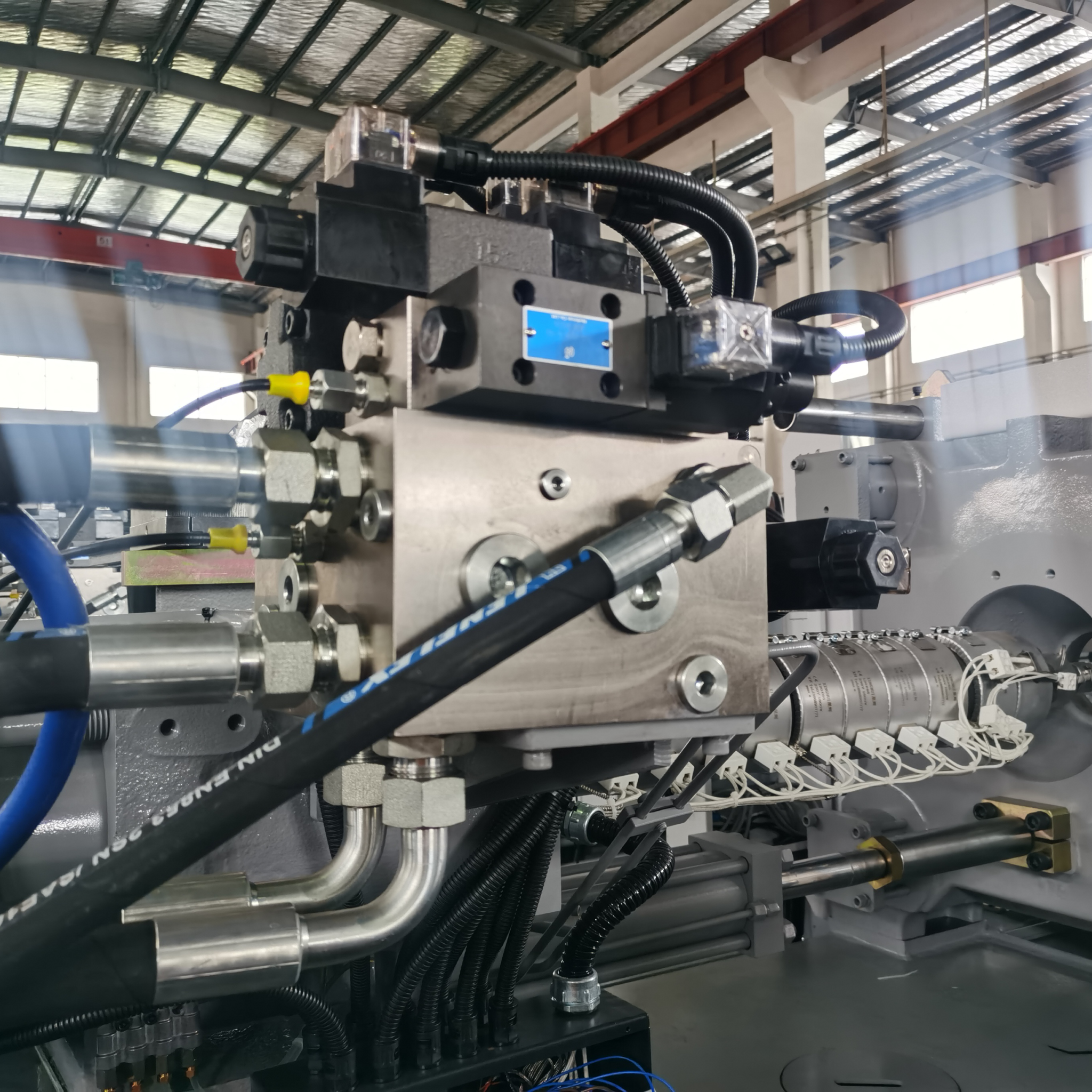

      Injection Molding Machines

      Injection molding machines use hydraulic manifolds to control the flow and pressure of hydraulic fluid, allowing for precision in the injection and clamping process. This precision is critical to the production of high quality plastic parts with consistent performance.

      Designed for injection molding machines, but can be optimized for other applications.

      Contact Zhuoyi for more information.
