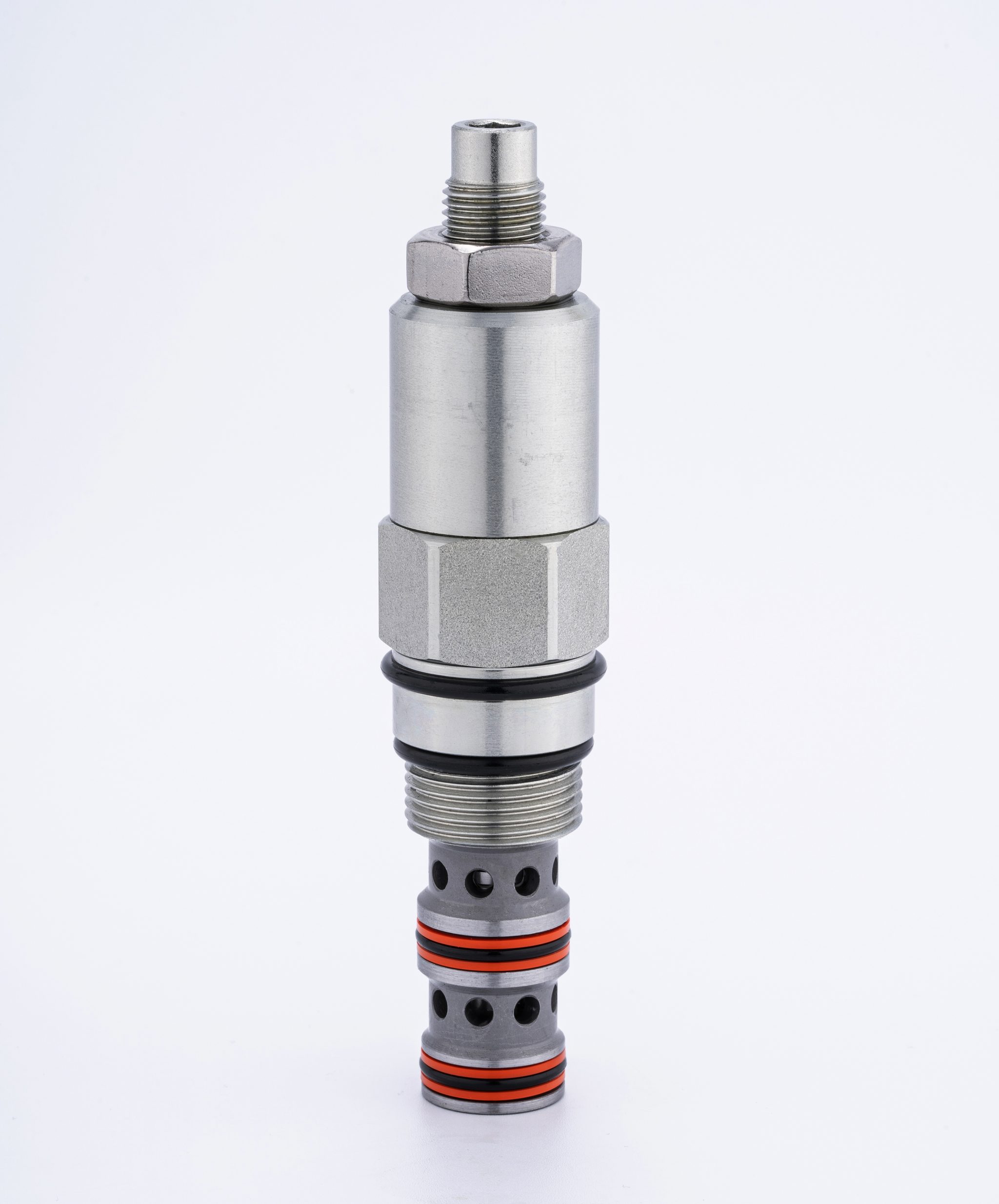

Hydraulic Sequence Valve

Hydraulic Sequence Valve

Example model:

ZY-PS-08W-32A-X-Y- Z

Technical Parameters
Rated pressure240 bar
Rated flow rate15 L/min
Molding Jacks08W-3
Installation torque25-35 Nm
XControl Method OptionsWeights kg
LStandard hexagon socket screws0.230
EAluminum handle with nut0.250
BAluminum Handle Set0.270
YSpring Regulating Options
A3.5 to 21 bar(Standard set pressure 70 bar)
B7 to 42 bar(Standard set pressure 70 bar)
C10 to 90 bar(Standard set pressure 70 bar)
D20 to 165 bar(Standard set pressure 25 bar)
ZSeal Material Options
NBuna-B
VViton
Order





    Download Catalog





      Ensure Quality – Full CNC Machining

      We adopt full CNC processing to maximize the elimination of human error, with consistency as high as 98%. Several strict inspection and cleaning procedures and a perfect system guarantee the high quality of the products.

      Technology development and design

      Technology development and design

      Testing of raw materials

      Testing of raw materials

      CNC machining

      CNC machining

      Burr repair

      Burr repair

      Surface grinding machine

      Surface grinding machine

      Surface finish detection

      Surface finish detection

      Ultrasonic cleaning

      Ultrasonic cleaning

      External processing nikel plating

      External processing nikel plating

      Thread check gauge

      Thread check gauge

      Hole inner diameter dial indicator detection

      Hole inner diameter dial indicator detection

      Thread ring gauge detection

      Thread ring gauge detection

      Semi-finished products endoscopic detection

      Semi-finished products endoscopic detection

      Product assembly

      Product assembly

      Assembly drawing comparison check

      Assembly drawing comparison check

      Packaging

      Packaging
